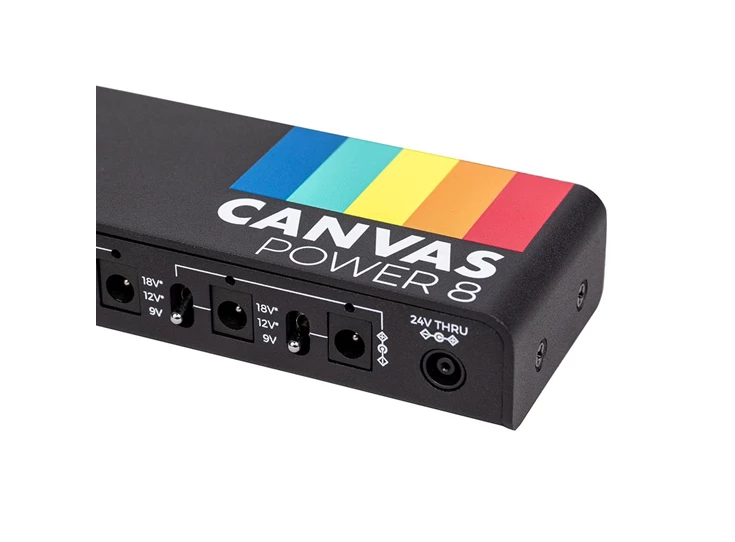

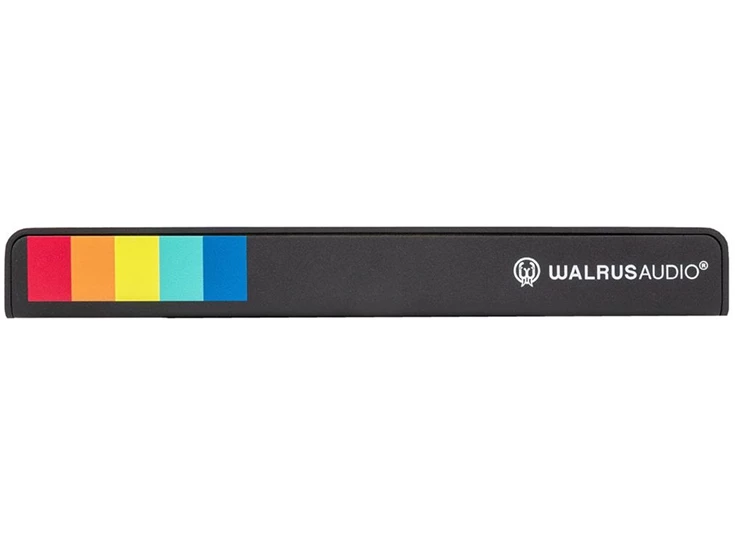

WALRUS AUDIO CANVAS: Power 8
Canvas Power Supplies bring simplicity and modularity to your pedalboard. With up to 500mA of quiet,isolated and “clean” 9V current on each output, these power supplies are perfect for the modern pedalboard. Each model is available as a standalone power supply or as a linkable set with another Canvas power supply via the 24V power coupler. This allows the Canvas Power to grow with you and eliminates the need to purchase additional power supplies that require an additional outlet. The ultra-thin design allows Canvas Power Supplies to fit under virtually any pedalboard, ende included universal mounting brackets mean and you don't have to worry about your power supply staying in place. Thanks to the built-in LED power meter you can clearly see how much power is left, and each output has its own LED indicator that shows when power is being used. You will also find custom 2.1mm barrel cables in the box, specially designed with a 90 degree plug at one end and a super short straight plug at the other end. This gives you maximum flexibility to place these power supplies in tight spaces. Of course, the Canvas Power also works with standard 2.1mm barrel cables, but they're not nearly as cool!
Canvas Power 8 Details:

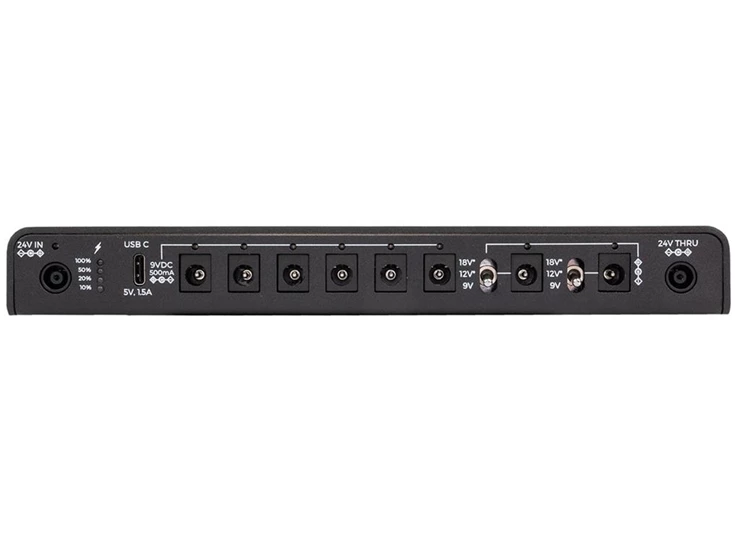

The Canvas Power 8 has 8 isolated power outputs that provide up to 500mA of ""clean"" current at 9v.Two of the outputs have variable voltage, allowing you to switch between 9v, 12v and 18vto power high-voltage pedals. It also has a USB C port for poweringdevices such as your phone or tablet while you play.
Features:
- Canvas Power is a modular, linkable ecosystem to power your pedalboard
- Includes external power supply unit: 4 Ampere, 96 Watts
- 8 isolated outputs
- All outputs provide 500mA
- 2 ports with variable output of 9, 12 or 18 Volts
- Ultra slim profile fits under most boards (incl. Pedaltrain Nano and Metro series)
- Clean, quiet, isolated power
- Enough right angle to straight “barrel to barrel” cables to supply power from every output to a pedal
- Included barrel cables have a very low profile tip for fitting into tight spaces
- 24V in and 24V Thru to connect to “Canvas Power Link” models to grow with your pedal collection

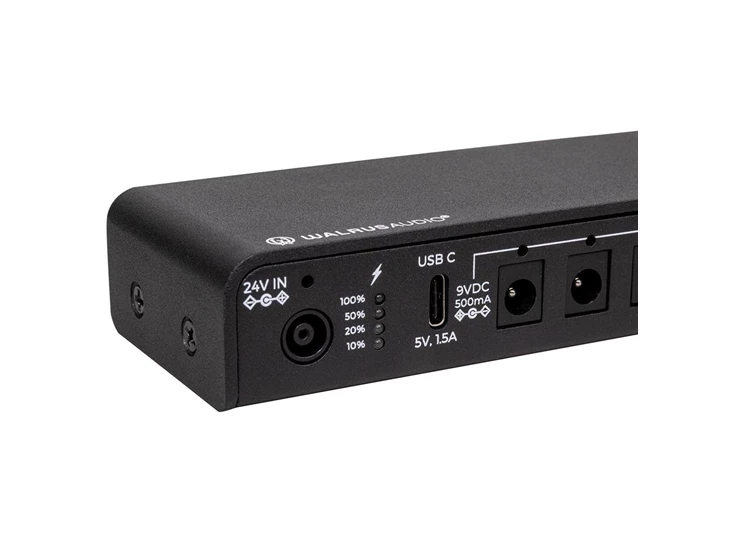

- LED Power Meter: 100%, 50%, 30%, 10% status indicator
- USB C port to power accessories or charge phone/tablets
- Includes mounting brackets to mount to elevated boards like Pedal Train and similar style boards
- Dimensions: 20.6 x 5.4 x 2.54 cm
- Weight: 0.64 kg (incl. external power supply unit)
- Made in the USA
