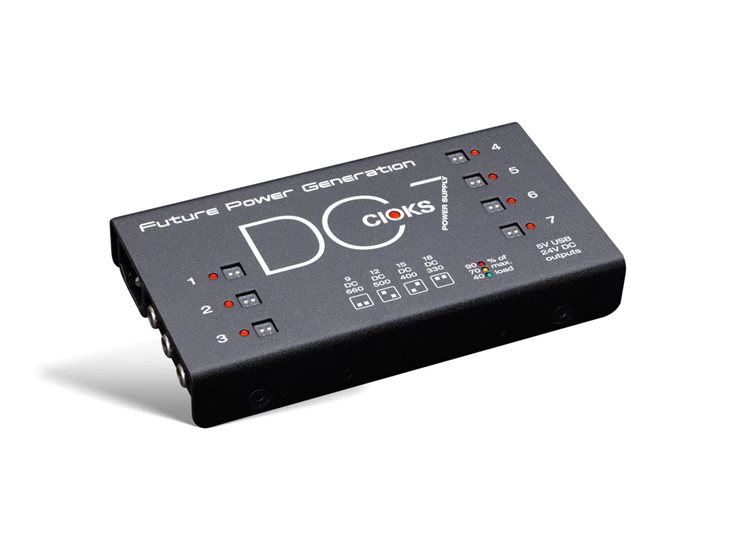

CIOKS DC7
Power Supply
The groundbreaking DC7 has a one-inch (25,4mm) profile and weighs 1.1 pound (500 grams) thanks to the pure 2-stage switch-mode technology inside. The profile may be low but the power ratings are certainly not – the DC7 puts out a maximum of 48W and allows the user to connect multiple high-current effects such as devices from Effectrode, Line 6 and Eventide without noise of any kind.
Features:
- Groundbreaking 1-inch profile (25,4mm)
- 2-stage switch-mode power supply topology
- Ultra-low noise achieved by multistage filtering
- 7 isolated DC-outlets, 6W each
- 660mA at 9V DC on each outlet
- 4 selectable voltages on each outlet
- 5V USB outlet with max. 1A
- 24V DC auxiliary outlet with max. 2A
- Individual power limit LED on all outputs
- Built-in true power meter showing the total load
- Global overload status LED
- Universal mains input voltage 90 to 265V AC
- Total maximum output power 48W
- Mounting hardware for Pedaltrain and Templeaudio boards included
- Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards*
- 12 Flex cables included
- Expandable with CIOKS 4*, CIOKS 8* and Crux*
- Weighs 1.1 lbs. (500 grams)
- Designed in Denmark, assembled in Poland
